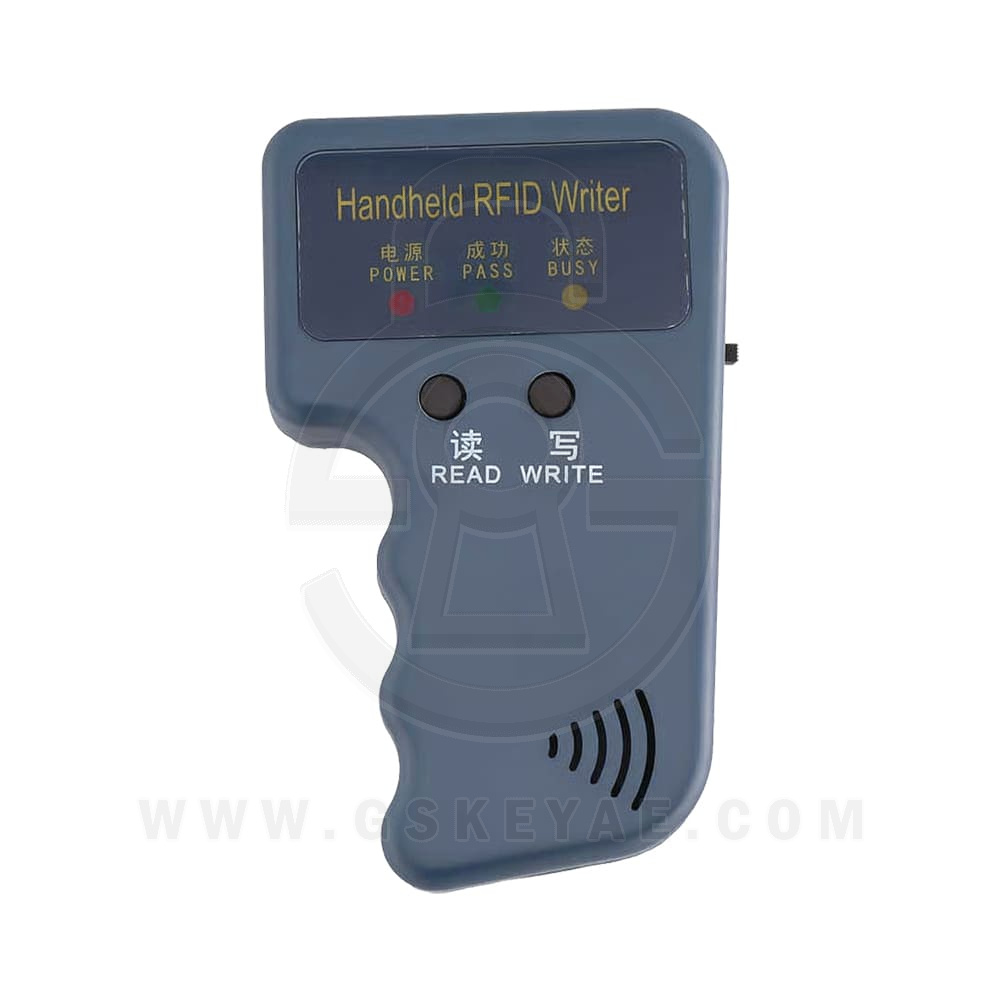

Handheld 125Khz RFID Duplicator Card Reader Copier Writer

Handheld 125 kHz RFID Duplicator — Card Reader, Copier & Writer

This Handheld 125 kHz RFID Duplicator is a portable device designed for reading, copying, and writing low-frequency RFID cards and key fobs. It’s ideal for cloning ID cards such as access badges, parking cards, personnel cards, and other 125 kHz tags.

Handheld 125 kHz RFID Duplicator Features :

• Portable Handheld Design: Compact and comfortable to hold, easy to carry in a bag or pocket.

• Wide Compatibility: Works with common 125 kHz RFID tags including EM4100, HID, and AWID formats.

• Energy Efficient: Runs on 2 AAA batteries, providing up to ~20,000 operations on a set of batteries.

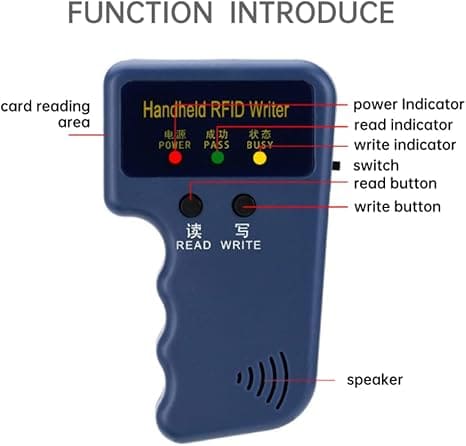

• Built-In Antenna: High-sensitivity receiver antenna for reliable reading and writing performance.

• LED & Buzzer Indicators: Visual and audio feedback make it easy to know when reading or writing is successful.

Technical Specifications :

• Operating Frequency: 125 kHz.

• Power: 2 × AAA batteries (not included).

• Battery Life: Approximately 20,000 read/write cycles.

• Reading Distance: Up to ~25 mm for keyfobs, ~60 mm for larger cards.

• Card types typically supported:

  • Writable tags: T5577, EM4305, CET5557, 5200, EM4205, etc.

  • Readable tags: EM4100, TK4100 (read-only IDs only).

• Device Size: ~71 × 117 × 31 mm.

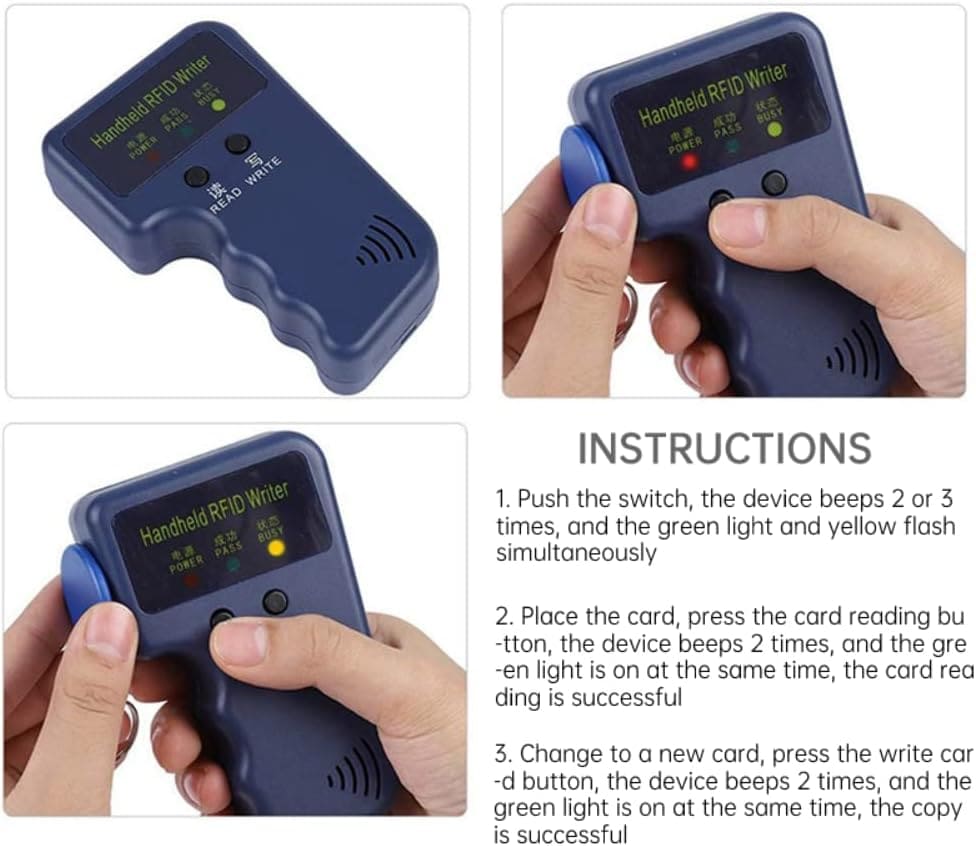

How a Handheld 125 kHz RFID Duplicator Works :

1. Power On: Slide the power switch — the device will beep and the LED will light to show it’s ready.

2. Read the Original Card: Place the original card or key tag near the built-in antenna and press READ. A beep and LED indicator confirm a successful read.

3. Write to a Blank Tag: Replace the original with a blank T5577 or EM4305 tag and press WRITE. When the beep sounds and the “PASS” LED lights, writing is complete.

4. Repeat: To make additional copies, repeat the write step with more blank tags.

5. Power Off: Turn off the device to save battery.
