CAME TOP 432NA 432SA 432EE Gate Garage Remote Control 2-Button 433.92MHz

CAME TOP 432NA 432SA 432EE Gate Garage Remote Control 2-Button 433.92MHz :

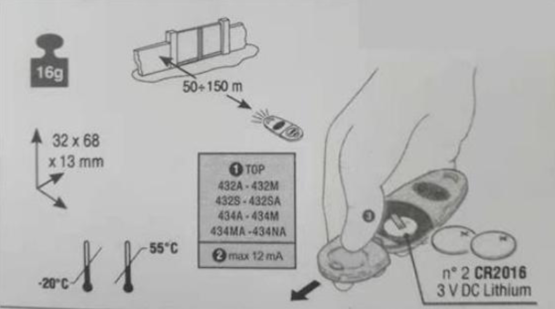

• Model: CAME TOP 432NA

• Frequency: 433.92 MHz

• Battery: 2 x CR2016 batteries

• Transmission Range: 50-150 meters (depending on environmental conditions)

• Current Draw: 12 mA

• Dimensions: 32 x 88 x 12 mm

• Weight: 16gram

• This remote replaces: replacement for other models within the CAME TOP series such as TOP 432A, TOP 432M, TOP 432S, TOP 432SA, TOP 434A, TOP 434M, TOP 434MA, TOP 434NA

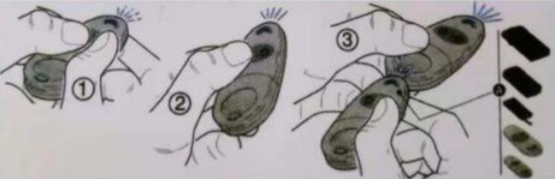

How to Activate it (Duplication)

1. Press both buttons together until the LED flashes more quickly.

2. Now, press the button you wish to activate (the LED will light up).

3. Within 10 seconds, place the active transmitter against the back of the remote and press the button you wish to duplicate for a few moments.

4. Once memorized, the LED will flash 3 times.

Additional Information:

• Power Consumption: The transmitter power draw during operation is not specified in the manual.

• Battery Replacement: To replace the battery, use a screwdriver to open the remote and dispose of used batteries in accordance with local regulations.
